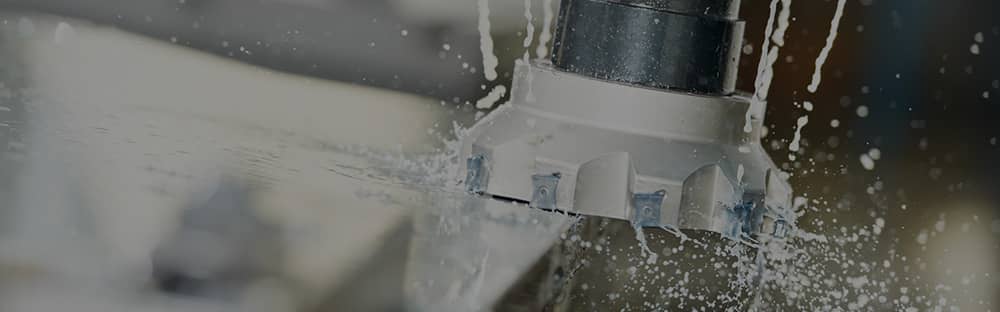

CNC Milling

Machine Name Machine Type X axis (mm) Y axis (mm) Z axis (mm) Max Weight (Kg)
Ajax Mill 2550 940 1000 4500
Bridgeport VMC1000/30 Mill 1017 452 481 900
Haas VF10 Mill 3048 813 762 1814
Haas VF3 Mill 1016 508 635 1588
Haas VF5 Mill 1270 660 635 1588
Haas VF6 Mill 1625 813 762 1814
Haas VF7 Mill 2134 813 762 1814
Haas VF8 Mill 1626 1016 762 1814

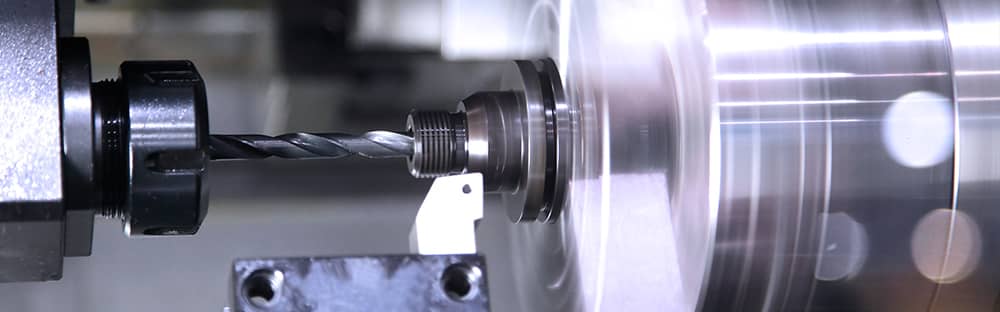

CNC Turning

Machine Name Machine Type Chuck Diameter (mm) Chuck Thru Hole (mm) Ø Under Saddle (mm) Length Between Centres (mm)
Colchester 4000 Lathe 300 102 360 1720
Colchester K4 Lathe 400 102 370 1900
Combi 4000 Lathe 300 102 370 1750
Combi 6000 Lathe 530 170 500 2650
Combi 6000 LB Lathe 530 170 500 3800
DSG Lathe 920 279 781 4191
Puma 400 L Lathe 380 115 500 1702
Puma 400 LM Lathe 450 115 600 2000
Puma 700 Lathe 800 160 790 3000

Mill / Turn

Machine Name Machine Type X axis (mm) Y axis (mm) Z axis (mm) Max Weight (Kg)
Mazak 1850 Vertical Mill/Turn 2130 1850 1840 3500
Mazak E1060 Vertical Mill/Turn 1625 1060 1345 1800

Machine Name Machine Type Chuck Diameter (mm) Chuck Thru Hole (mm) Ø Under Saddle (mm) Length Between Centres (mm)
Mazak E500 Horizontal Mill/Turn 630 160 700 3200
Mazak E650 Horizontal Mill/Turn 610 155 460 6100
Puma MX Horizontal Mill/Turn 305 75 500 1100
Puma MX Horizontal Mill/Turn 380 75 500 1000
Puma SY Horizontal Mill/Turn 210 61

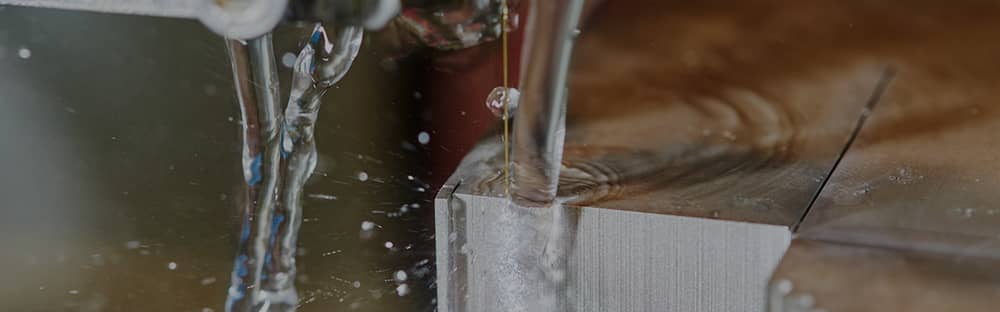

Wire & Spark Eroding

Machine Name Machine Type X axis (mm) Y axis (mm) Z axis (mm) Max Weight (Kg)
AG600 Wire 600 400 350 1000
Agie Spark 602 300 400 800
K1C Spark 200 300 210 100
Mecrode Spark 640 300 370 800

Holistic Precision

The basic nature of our business is to receive drawings and deliver parts, but we understand that our clients need much more than just a part delivered to the drawing.  As a customer oriented organisation, Hyspec Engineering delivers services which are beyond simply precision, or accuracy.  We are an organisation that has “precision” as a fundamental ideology driving all aspects of our business.  We pursue a holistic precision management ideology to ensure that our clients are able to experience this attention to detail in every aspect of our business, whether it is reliability, responsiveness, communication, knowledge, continuous improvement, risk management or co-operation.  We want to deliver for our clients.  Precision for us is not only about quality and scope of work but it’s also about our ability to partner with our clients in helping them achieve their vision.

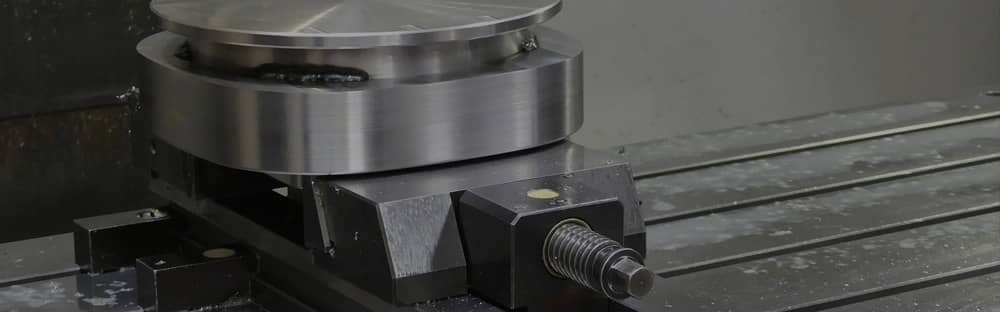

Kits and Assemblies

Hyspec has been supplying Mechanical, Hydraulic and Pneumatic kits and assemblies to different sectors across the globe for decades. These assemblies consist of machined parts and purchased parts, all tested and certified to customer requirements at minimum prior to shipment.

Using our standardised documentation practices across our business operations, all necessary paperwork is provided, along with a full certificate of conformity at the completion of each job.

Supplying assemblies and kits can save our customers time and space, and reduce their inventory cost; and since all of the parts can be traced through a single supplier, we help to save customers time and money during their RFQ process.

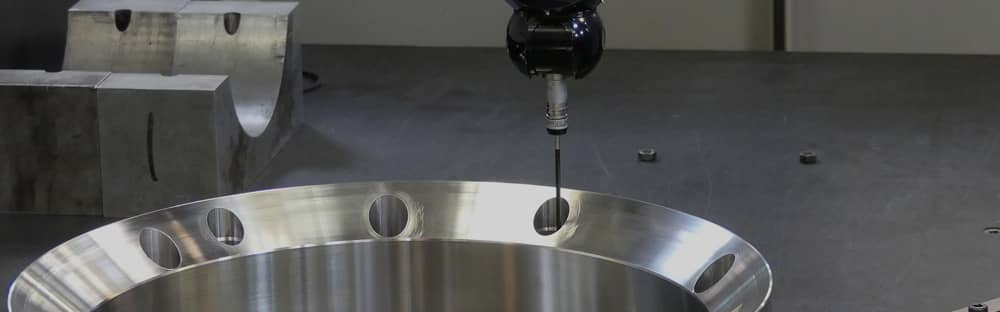

Precision Machining Parts

Hyspec Engineering has been satisfying the precision machining and engineering needs of clients for nearly four decades. Our highly skilled workforce and sophisticated machine tools make us the only company you need for all your precision machining requirements.  Our workshop hosts some of the finest machine tools which allow us to deliver parts ranging from 10mm to 2.5 metres in diameter, and 6 metres in length.

While we are renowned for our ability to deliver complex parts, we are equally adept at the regular, low complexity batch production.  From our state of the art Scottish headquarters covering over 40,000 square feet, Hyspec is well placed to serve engineering clients across the globe.

Hyspec stands for versatility, sophistication and above all precision. We understand how critical our services are to your business and are always sensitive to your requirements.

Hyspec Engineering Coatings Facility

Since 2015, Hyspec Engineering have offered their customer base a varied range of services and coatings which include Xylan, molybdenum disulphide, zinc phosphate, shot blasting, aluminium  oxide blasting and glass bead blasting. We also apply epoxy and phenolic paint systems to Norsok M- 501 systems 1& 7.

Hyspec Engineering apply their expertise, dynamism and professionalism to produce a quality, on time product to their customers while meeting the strict criteria expected. Currently coating parts for the Oil & Gas, Renewables and Nuclear industries.

Current machine capabilities in the coatings Facility are:-

  • 2 x Blast Rooms 3.6m x 2.1m x 2.2m
  • 1 x Oven capable of curing to 350°C, internal dimensions are 2.9m x 1.9m x 2.3m
  • 1 x Oven capable of curing to 450°C, internal dimensions are 1.4 x 1.9m x 2.37m
  • 1 x Spray booth, internal dimensions are 3.2m x 3.2m x 2.5m
  • 1 x Spray booth, internal dimensions are 4.33m x 3.2m x 2.5m
  • 1 x Phosphate tank, internal dimensions are 2.8m x 1.4m x 1.3m
